Scheduling Docking Job Items

To schedule the docking job items:

1. Click Docking.
2. Select the docking project you wish to schedule jobs for.

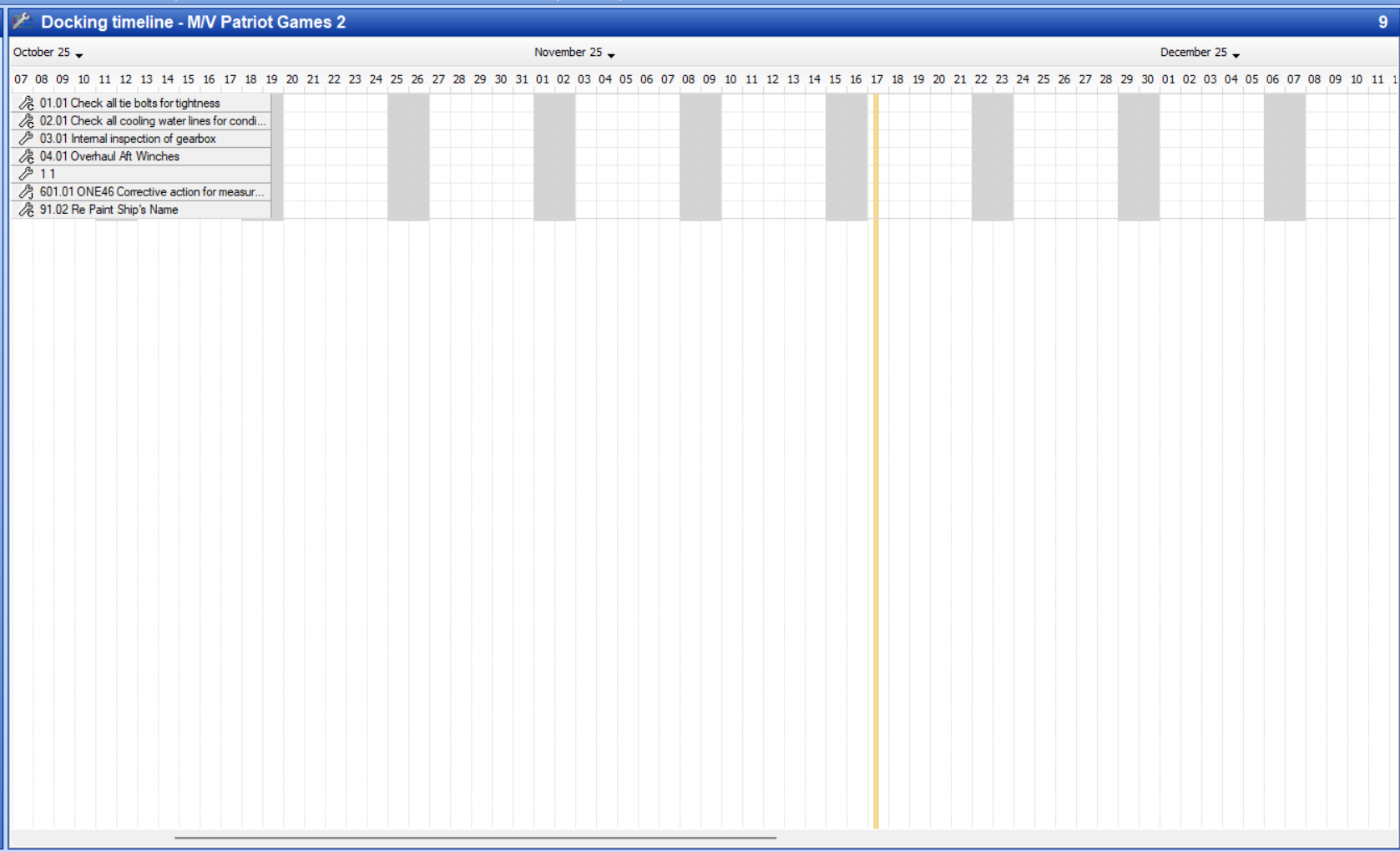

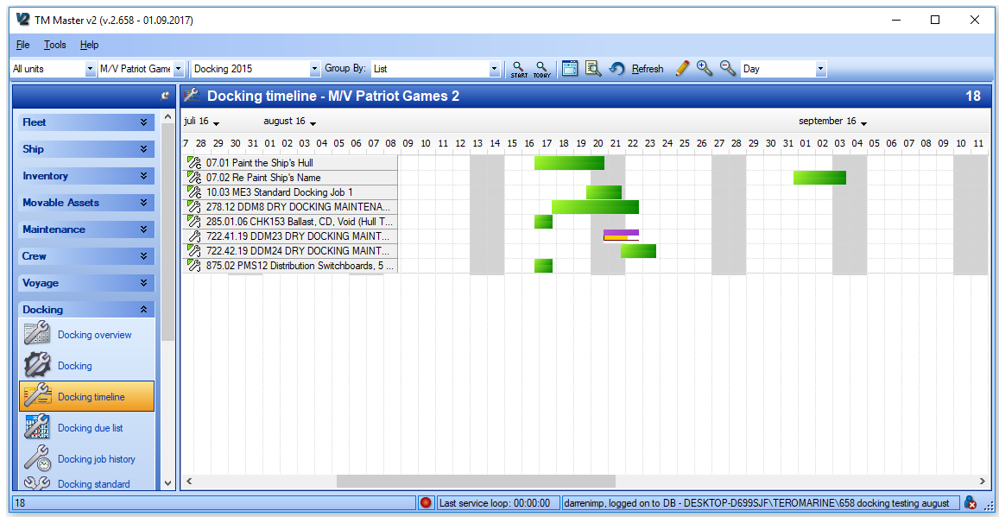

3. Click Docking time line. (To the left all job items are listen vertically, and the days/weeks/months are represented horizontally.)
4. You can change the scale for the timeline using the [Zoom in] and [Zoom out] buttons found in the top menu or using the selector next to them.

The yellow vertical line represents today. If you have set a start date for any of your job items, they will appear in the timeline view, and if you have also set a value in duration for it the job items will be represented as a line stretching along the time line. These settings are found at the bottom on each job item.

Note: The actual start date for a dry dock project may change several times during the planning of the project. By setting a job item’s start date as “Relative to dock date”, the job item’s start date will be updated, automatically when the entire project date is changed.

1. You can edit the start date and the duration in this time line view, by clicking “Edit in grid”.
2. Click and hold on the center of a job line and drag the job item to a new date.
3. If you click and hold at either the front or end of the line, you can adjust the duration for the job.
4. Double clicking a job line, will open the job item, and you can edit its details.

The colour on the job lines represents the job items status.

Blue: Planned

Red: Overdue (or not started (no progress % for the job item has been set)

Purple: In progress (a % progress has been set for the item)

Green: Signed out.

Tip: If you have made changes to a job item, but this is not reflected in the time view, click Refresh to update the view.
